  Home >> CB RADIOS >> QYT 27MHz CB-58 Handheld Walkie Talkie AM FM CB Radio

QYT 27MHz CB-58 Handheld Walkie Talkie AM FM CB Radio [Comments(0)|Leave your Comment]
Item#:12072223452630
Score:12  (Score change Discount Voucher)
Weight:0.85 kg.
List Price:$160.00
Price:$60.00
You Save:$100.00
Qty:

Prev:Albrecht AE 6110 - Der Powerzwerg! Ein CB-Funkgerät im Slim-Line Format

Next:QYT KT-8R Quad-Band 136-147MHz 400-470MHz 220-270MHz 350-390MHz Walkie Talkie Handheld Two-way Radio

detail

Related

Comment

Payment

Shipping

QYT 27MHz CB-58 Handheld Walkie Talkie AM FM CB Radio

Description

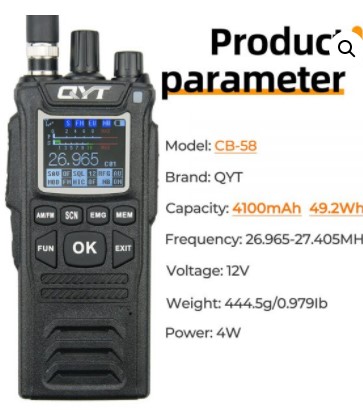

NEW QYT 27MHz CB-58 Radio Standard Handheld 40 Channel AM/FM CB Radio(4W Handheld Walkie Talkie) 26.965-27.405MHz

Specification:

Power: 4W
Modulation Mode: AM/FM
Frequency Range: 27MHZ(26.965-27.405MHz)
Frequency Tolerance: ±5.0ppm
Input Voltage: 12V

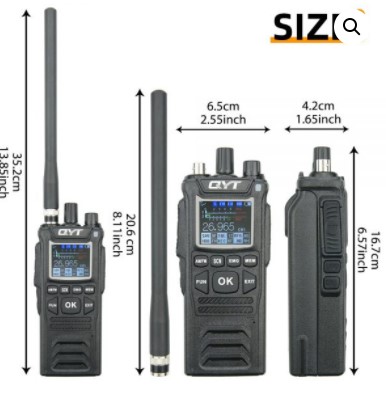

Dimensions(in mm): 165(W) x 67(D) x44(H)
Weight:Approx.444.5g
Frequency Control: PLL Synthesizer
Operating Temperature Range: -20°C TO + 55°C
Transmit: 2A MAX
Current Drain: Receive(Squelched 0.3A) VOL Max(0.8A)
Antenna Connector: UHF,SO-239

Battery Model: WB58L Battery Capacity:4100mAh Battery Watt Hours: 49.2Wh



Receiver:

Sensitivity: Less than 1uV for 10dB(S+N)/N
Image rejection: 70dB
Adjacent channel rejection: 60 dB
IF frequency: 1st 10.695MHz 2nd 455KHz
Automatic gain control(AGC): less than 10dB change in audio/output for inputs from 10 to 50000uV
Squelch: less than 1uV
Frequency response: 300-3000Hz



Main Feature:

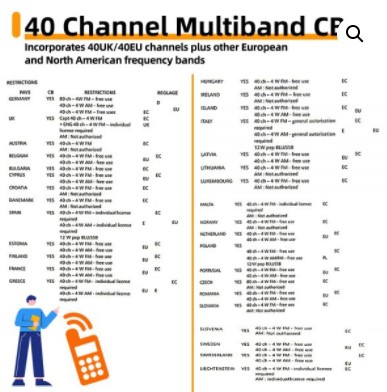

▲40 Channel Multiband CB
(Incorporates 40UK/40EU channels plus other European and North American frequency bands)
▲TFT LCD Display
▲8 Optional Channels
▲CTCSS/DCS
▲DTMF
▲TOT
▲Automatic Squelch function
▲Squelch level adjustable
▲Receive gain control adjustment
▲Editable channel scan
▲Shortcut channel 9/19
▲NB/ANL wave filter
▲Audio high frequency cancellation
▲Keyboard Lock

Transmitter:

▲Power output: 4Watt/FM/AM
▲Transmission interference: inferior to 4nW(-54dBm)
▲Frequency response: 300-3000Hz
▲Modulated signal distortion: inferior to 5%
▲Output impedance: 50 ohms

Package contents A

QYT CB-58 27mHz radio
4100mAh Li-ion battery pack – fitted to radio
User Manual in English
Radio antenna
Charger base
Adapter
earphone

Package contents B

QYT CB-58 27mHz radio
Battery case(Does not include battery)
User Manual in English
Radio antenna
