  Home >> UHF Band >> Cheap TD501 DMR intercom digital radio,Beifeng TD501 DMR UHF 400-470MHz Digital Two-way Radio, Support Mototrbo Intercom

Cheap TD501 DMR intercom digital radio,Beifeng TD501 DMR UHF 400-470MHz Digital Two-way Radio, Support Mototrbo Intercom [Comments(0)|Leave your Comment]
Item#:14062310413264
Score:70  (Score change Discount Voucher)
Weight:0.9 kg.
List Price:$100.00
Price:$70.00
You Save:$30.00
Qty:

Prev:baofeng bf-888s handheld two-way radio portable walkie-talkie for construction site

Next:Портативная рация WLN KD-C1

detail

Related

Comment

Payment

Shipping

Cheap TD501 DMR intercom digital radio,Beifeng TD501 DMR UHF 400-470MHz Digital Two-way Radio, Support Mototrbo Intercom



pecifications

Cheap TD501 DMR intercom digital radio,Beifeng TD501 DMR UHF 400-470MHz Digital Two-way Radio, Support Mototrbo Intercom

Cheap TD501 DMR intercom digital radio,Beifeng TD501 DMR UHF 400-470MHz Digital Two-way Radio, Support Mototrbo Intercom

Product Description

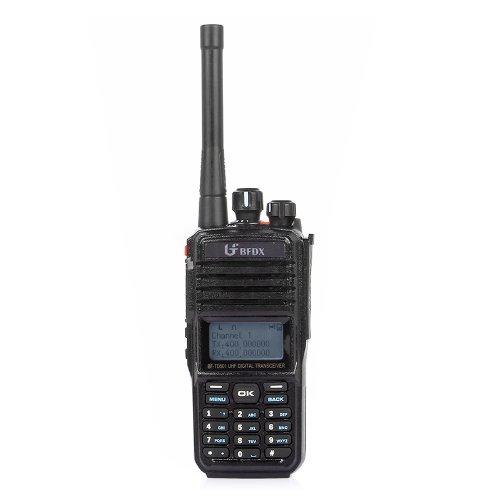

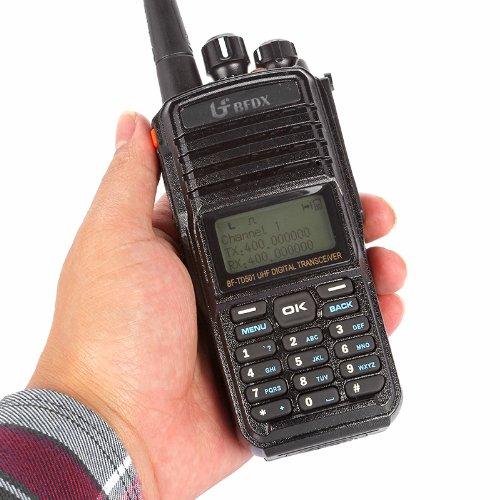

TD-501 is a professional handheld digital radio based on DMR technical standards design and manufacture .support digital Mototrbo, analog and mixed-mode provider users transition time and buffer time ;millions of 128-bit encryption technology in digital mode which ensures the privacy of communication; digital intelligent signaling and messaging functions, provide a richer management scheduling; shareable DMR digital / analog repeater build system network Provide users with digital-analog-compatible system devices and optimized coverage solution, with reducing the cost of a wireless communication system construction.

Specifications:


Transmitter
* RF Power Output: Low:1.0W High:4.0W
* 4FSK Digital Modulation: 12.5kHz for data:7K60FXD
12.5kHz for data and voice:7K60FXE
* FM Modulation: 12.5 kHz:8K50F3E
* Modulation Limitation: +/- 2.5kHz @ 12.5kHz
* FM noise: -40dB
* Spurious Emission: -36 dBm≤1GHz/-30 dBm≥1GHz
* Adjacent Channel Power: ≤-60dB
* Audio Response: +1/-3 dB
* Audio distortion: 0.03
* Digital Vocoder Type: AMBE+2™

Receiver
* Digital Sensitivity: 5% BER:0.25 uV
* Analog Sensitivity: 0.25 uV (12 dB SINAD)
* Intermodulation rejection ratio: 60dB
* Adjacent channel selectivity: 60 dB
* Spurious emissions: 70 dB
* FM noise: -40dB
* Audio Response: +1/-3 dB
* Audio output power: 1200mW
* Audio distortion: 3% (typical)
* Conduction Radiation Emission: -57dBm
* GPS precision: ≤-10m(Good signal conditions )

Packager Content:


1 x Beifeng TD-501 Digital DMR Radio

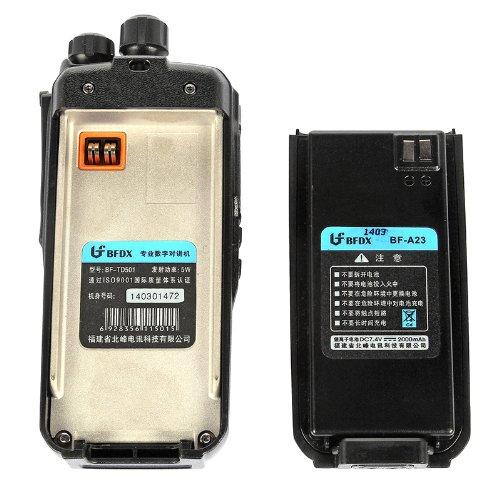

1 x 2000mAh Li-ion Battery Pack
1 x Antenna 136/430MHz
1 x Belt Clip
1 x Hand Strap
1 x User Manual
1 x Adapter
1 x Desktop Charger







DMR Feature







1.Frequency: UHF 400-470MHz ,350-390MHz , VHF 136-174MHz



2.Channels:160



3.Zones:50



4.Channel spacing:12.5KHz



5.Voltage:7.5V



6.Battery capacity:1700mAh



7.LCD display



8.SMS function



9.Keypad dialing



10.Support single,group and general call



11.With built-in USB connector



12.With clear critical distance voice



13.With digital audio signals



14.Missed call indication



15.Emergency alarm



16.4-side buttons can be programmed



17.Standby time:100 hours



18.With high/low voltage alarm



19.Dimension:60*39*103cm















 Technical Specification:



General

Frequency range

UHF:400-470 MHz

VHF:136-174MHz

UHF:350-390 MHz

Channels

160

Zones

50

Channel spacing

12.5KHz

Voltage

7.5V

Battery capacity

1700mAh

Battery Life(5/5/90)

Digital mode:15H(GPS off)

Analog mode:12H(GPS off)

Frequency stability

±1.5ppm

Antenna impedance

50 ohm

Dimension

60(L)*39(W)*103(H) mm

Transmitter



High:4.0W

RF Power Output

Low:1.0W

4FSK Digital Modulation

12.5kHz for data:7K60FXD

12.5kHz for data and voice:7K60FXE

FM Modulation

12.5 kHz:8K50F3E

Modulation Limitation

+/- 2.5kHz @ 12.5kHz

FM noise

-40dB

Spurious Emission

-36 dBm≤1GHz/-30 dBm≥1GHz

Adjacent Channel Power

≤-60dB

Audio Response

+1/-3 dB

Audio distortion

3%

Digital Vocoder Type

AMBE+2™

Receiver

Digital Sensitivity

5% BER:0.25 uV

Analog Sensitivity

0.25 uV (12 dB SINAD)

Intermodulation rejection ratio

60dB

Adjacent channel selectivity

60 dB

Spurious emissions

70 dB

FM noise

-40dB

Audio Response

+1/-3 dB

Audio output power

1200mW

Audio distortion

3% (typical)

Conduction Radiation Emission

-57dBm

GPS precision

≤-10m(Good signal conditions )

Environmental Specifications

Operating Temperature

-20°C—60°C

Storage Temperature

-30°C—+85°C

Humidity

MIL-STD-810C/D/E/F

Shock&Vibration

MIL-STD-810C/D/E/F







Each set packaging includeing:



1 x radio



1 x charger



1 x battery



1 x antenna



1 x belt clip



1 x use's manual







Optional accessories:



Speaker Microphone



Earphone



Radio Case
