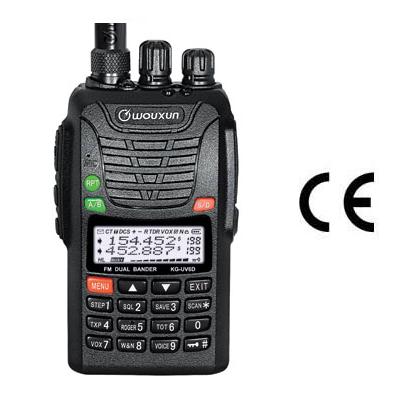

Wouxun KG-UV6D V2 Dual Band Amateur Ham Radio [Comments(0)|Leave your Comment]
Brand:WOUXUN walkie talkie
Item#:12061601180595
Score:0  (Score change Discount Voucher)
Weight:0.85 kg.
List Price:$70.00
Price:$60.00
You Save:$10.00
Qty:

Prev:Wouxun KG-UVD1P VHF + 220Mhz Dual Band 2M / 1.25M Radio

Next:2012 Newest!!!AIC Portable Dual Band Walkie Talkie(AC-UV3R)

detail

Related

Comment

Payment

Shipping




Model: KG-UV6D V2

- Amateur TX COVERAGE
- FCC ID: WVTWOUXUN04 (As labeled by Wouxun China)

Whats New?
  • More memory channels, now 199!
  • RPT button for quick repeater offset direction
  • S/D button locks
  • VFO knob functions when keypad is locked
  • Larger, robust design, IP55 water resistant rating

Features

  • Dual band monitor (VHF/UHF, VHF/VHF, UHF/UHF)
  • Dual alpha numeric, backlit display with channel name edit
  • Selectable high/low power settings (VHF: 5W high/2W low) (UHF: 4W high/2W low)
  • Includes extended life high capacity li-ion battery as standard
  • Includes intelligent desktop 3-4 hour rapid charger
  • Loud speaker audio output (500 mW)
  • Bright flashlight illumination function
  • Meets IP55 waterproof rating
  • English female voice prompts enable non-sighted operation (can be turned off)
  • 199 memory channels (shared)
  • VOX Function
  • Digital FM radio (76-108MHz) with automatic tuning and storing, radio frequency display, 18 FM memories in 2 banks
  • Wide/narrow bandwidth selection (25 or 12.5 kHz)
  • Power on display: show battery voltage, 6-character customizable welcome message, or display test
  • Windows PC programmable, optional cable required.
  • Radio to radio cloning with optional cable
  • Same channel: VHF TX & UHF RX or UHF TX & VHF RX available
  • 105 groups DCS/50 groups CTCSS
  • DTMF encoding (includes ABCD tones, continuous with button press duration)
  • CTCSS encode/Decode (no decode delay)
  • Stopwatch function
  • SOS function
  • Low-voltage voice prompt
  • Busy channel lockout
  • Selectable transmit over timer (from 15 to 600 seconds)
  • Selectable step sizes of 5, 6.25, 10, 12.5, 25, 50 or 100 kHz
  • Multiple scan modes including priority scan
  • Keypad lock (auto or manual)
  • Programmable by computer
  • High contrast white backlit keypad. All keys are backlit (except A/B, S/D & RPT)



Specifications

KG-UV6D

Factory Set

Frequency Range

 VHF: 136 - 174 MHz (TX: 144-148Mhz)*
UHF: 406.1 - 470 MHz (TX: 430-450Mhz)*
FM: 76-108 MHz

*TX Frequencies Not Adjustable

Memory Channels

199 channels (shared)

Operating Voltage

7.4 VDC

Operating Temperature

-22°F to 140°F (-30°C to +60°C)

Dimensions (W x H x D)

2.6 x 4.7 x 1.6 inches (65 x 119 x 39.5mm) (without antenna)

Weight

 8.9 ounces (253 grams)

 RF Carrier Power

VHF: 5W high/2W low, UHF: 4W high/2W low

Audio Output Power

500mW

Waterproof Rating

Meets IP55 waterproof rating





Antenna Impedance

50Ω

Sensitivity (12dB SINAD)

0.16 μV

Receive/Squelch Sensitivity

≤0.2 μV

Audio Distortion

≤5%

Audio Modulation

+3dB (pre-emphasis by 6dB between 0.3-3KHz)

Audio Response

 (300-3,000Hz) +1 to -3dB

Performance of Amplitude Limiter

≤3

Effective Radiation Power (ERP)

within pre-determined value ≤±7.5dB

Maximum Frequency Deviation

25KHz ± 5KHz

Inter Modulation Attenuation

≥40dB

Modulation Distortion

 ≤10%

Co-channel Rejection

≥-8.0dB

Adjacent Channel Selection

Channel Space: 25KHz ≥ 70dB

Channel Space: 12.5KHz ≥ 60dB

Inter-modulation

≥ 65dB

Radiation

≥84dB

Spurious Radiation

 9KHz to 1GHz ≤ -57dBm / 1GHz to 4GHz ≤ -47dBm


- Package includes: (Charger and adapter not exactly as shown)
  • KG-UV6D V2 Transceiver
  • Lithium Ion Battery (1300Mah)
  • Desktop charger 110V~240V
  • SMA Antenna
  • Software Resource CD
  • Belt clip
  • Hand strap
  • English user manual



Don't Forget...
Optional Accessories

Carrying Case Wouxun OEM Wouxun Premium All Others
Battery 1300 mAh 1700 mAh "AA" Alkaline Case
Cable USB DB-9 Serial Radio-Radio Clone
Microphone PTT Earbud Speaker Mic Throat Mic
Power Cord 12V DC In Battery Eliminator
Antenna SMA F-F BNC F Car 1/4 Wave




Please see estimated shipping date below for single units.
Order may ship faster based on current stock levels.
Stock level indicates the total number in-stock + current orders.


Add to Cart:


  • Model: KG-UV6D V2
  • 0 Units in Stock
  • Manufactured by: Wouxun
